Rear
Rear

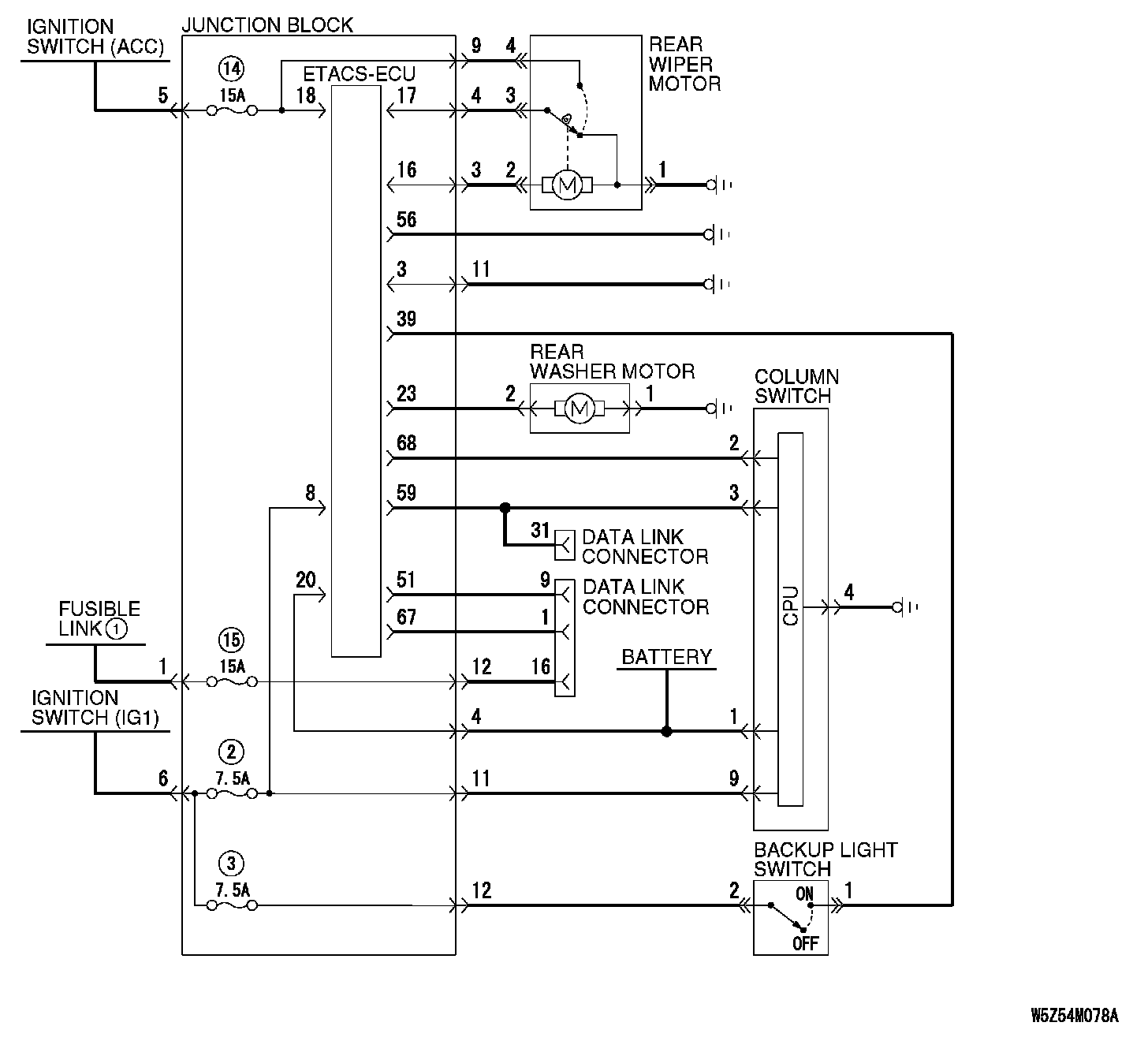

General Circuit Diagram For Rear Wiper And Washier Part 1:

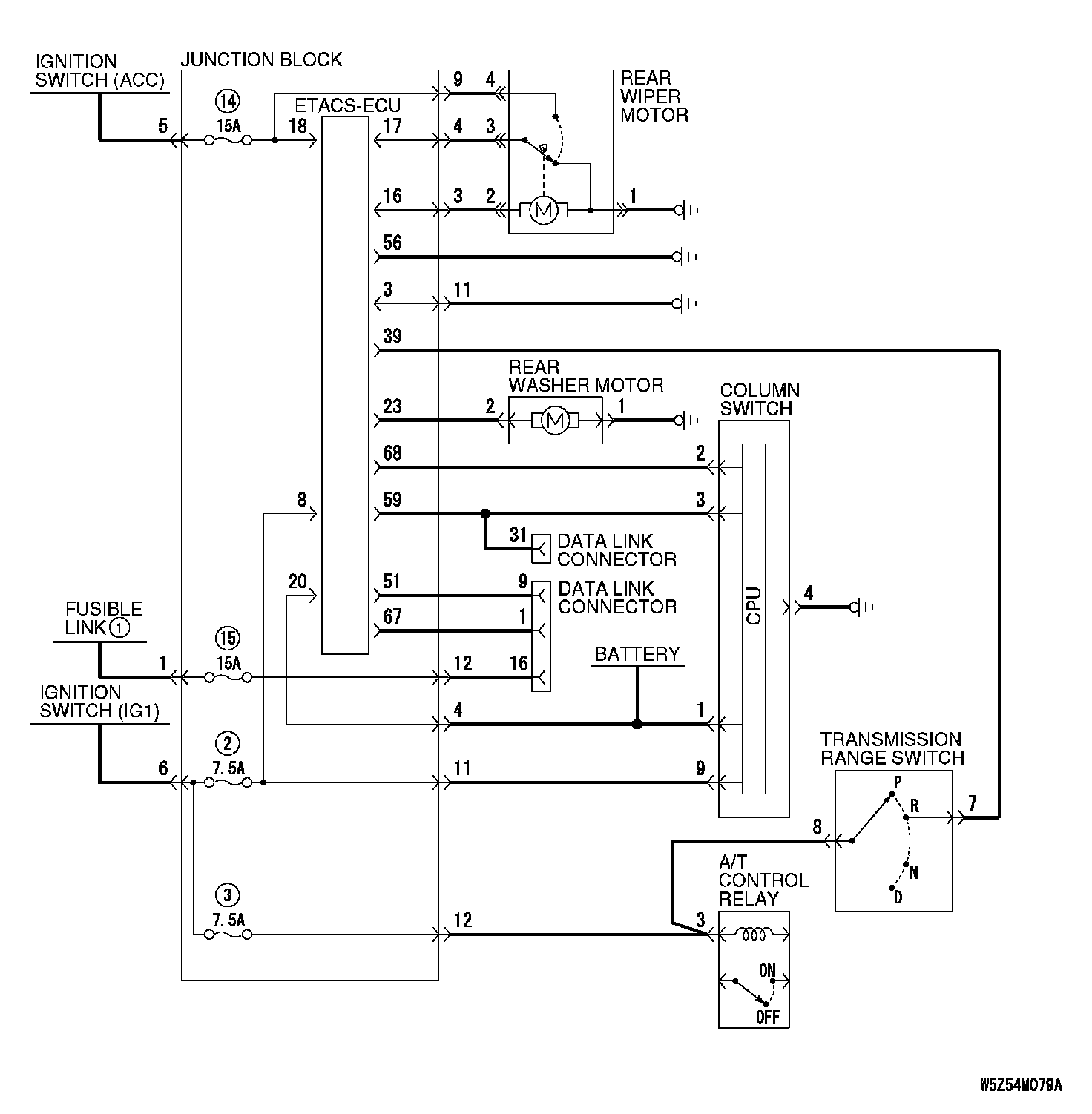

General Circuit Diagram For Rear Wiper And Washier Part 2:
