Removal and Replacement

TRANSFER ASSEMBLY

REMOVAL AND INSTALLATION

CAUTION *:Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.

Pre-removal And Post-installation Operation:

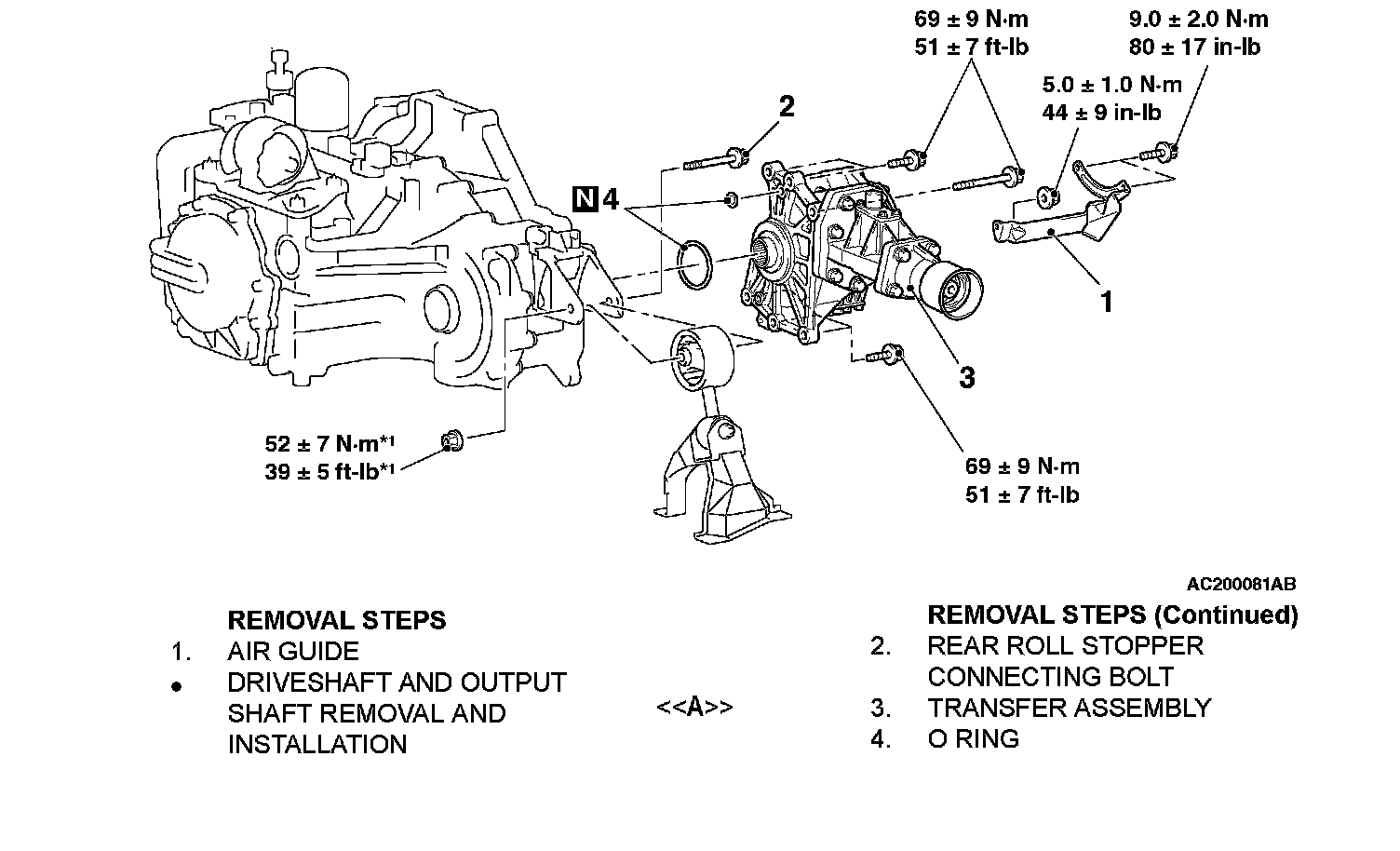

Removal Steps 1-4:

REMOVAL SERVICE POINT
<> TRANSFER ASSEMBLY REMOVAL

CAUTION: After pulling out the transfer assembly, upon returning the transaxle assembly to the original position be careful not to damage the bush parts of the roll stopper.

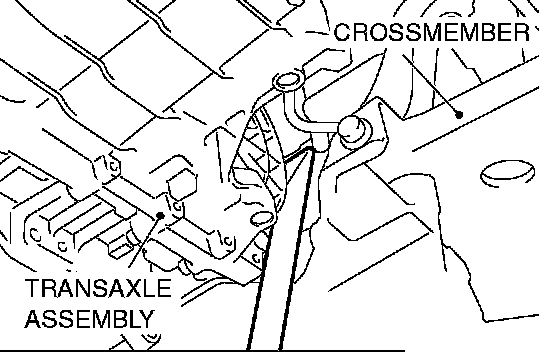

Use a tire lever, etc. to slide the transaxle assembly to the front of the vehicle, create a clearance between the transaxle assembly and cross member, and then pull out the transfer assembly from that clearance.
