Clutch Hydraulic System: Service and Repair

CLUTCH MASTER CYLINDER BLEEDING

CAUTION: Use the specified brake fluid. Do not mix brake fluids.

Specified fluid: Brake fluid DOT 3 or DOT 4

1. Disconnect the brake tube clamp and remove the brake master cylinder with the brake tubes connected.
2. Remove the brake fluid reservoir with the hoses connected.

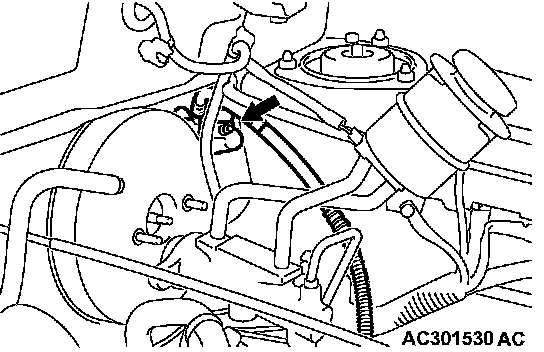

3. Connect a hose with a bottle to the bleeder screw.
4. Open the bleed nipple.
5. Depress the clutch pedal slowly. Open the bleeder screw to let air and brake fluid out. Close the bleeder screw. Release the clutch pedal. Repeat until only brake fluid and no air comes out.
6. Check that the brake fluid reservoir level stays between "MAX" and "MIN" marks throughout the clutch bleeding process.

CLUTCH RELEASE CYLINDER BLEEDING

CAUTION: Use the specified brake fluid. Do not mix brake fluids.

Specified fluid: Brake fluid DOT 3 or DOT 4

1. Remove the under cover.

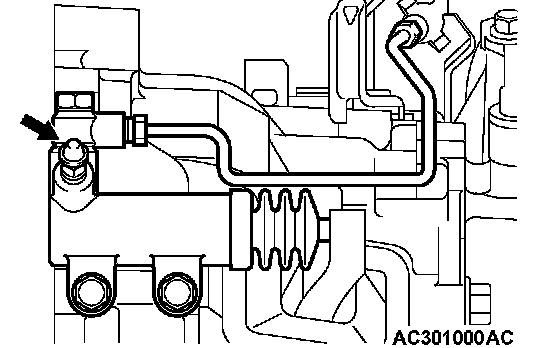

2. Connect a hose with a bottle to the bleeder screw.
3. Open the bleed nipple.
4. Depress the clutch pedal slowly. Open the bleeder screw to let air and brake fluid out. Close the bleeder screw. Release the clutch pedal. Repeat until only brake fluid and no air comes out.
5. Check that the brake fluid reservoir level stays between "MAX" and "MIN" marks throughout the clutch bleeding process.
