Planetary Gear

PLANETARY GEAR

DISASSEMBLY AND ASSEMBLY

Disassembly Steps 1-10:

ASSEMBLY SERVICE POINTS
>>A<< THRUST BEARING NUMBER 3 AND THRUST BEARING NUMBER 4 INSTALLATION





CAUTION: Use care to install the thrust bearings in the correct direction.

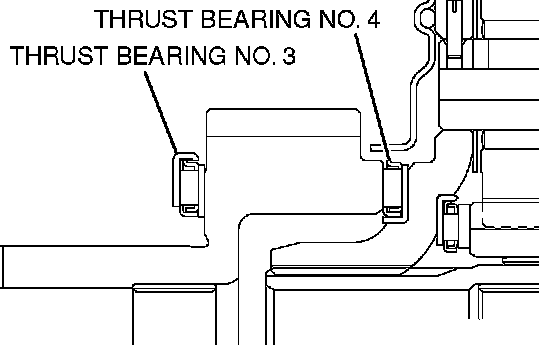

Check the installation direction of thrust bearings number 3 and 4, and install them as shown.

>>B<< ONE-WAY CLUTCH INSTALLATION

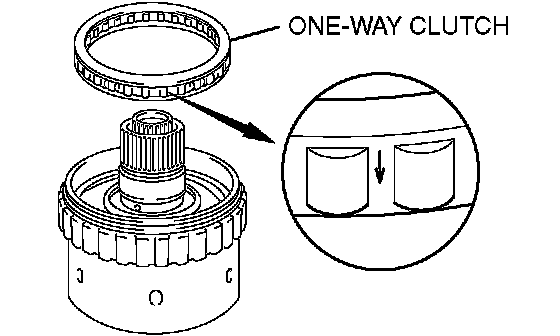

Insert the one-way clutch into the overdrive annulus gear so that the arrow points towards the output planetary carrier.
