Drive Shaft Oil Seal

DRIVE SHAFT OIL SEAL

DISASSEMBLY AND ASSEMBLY

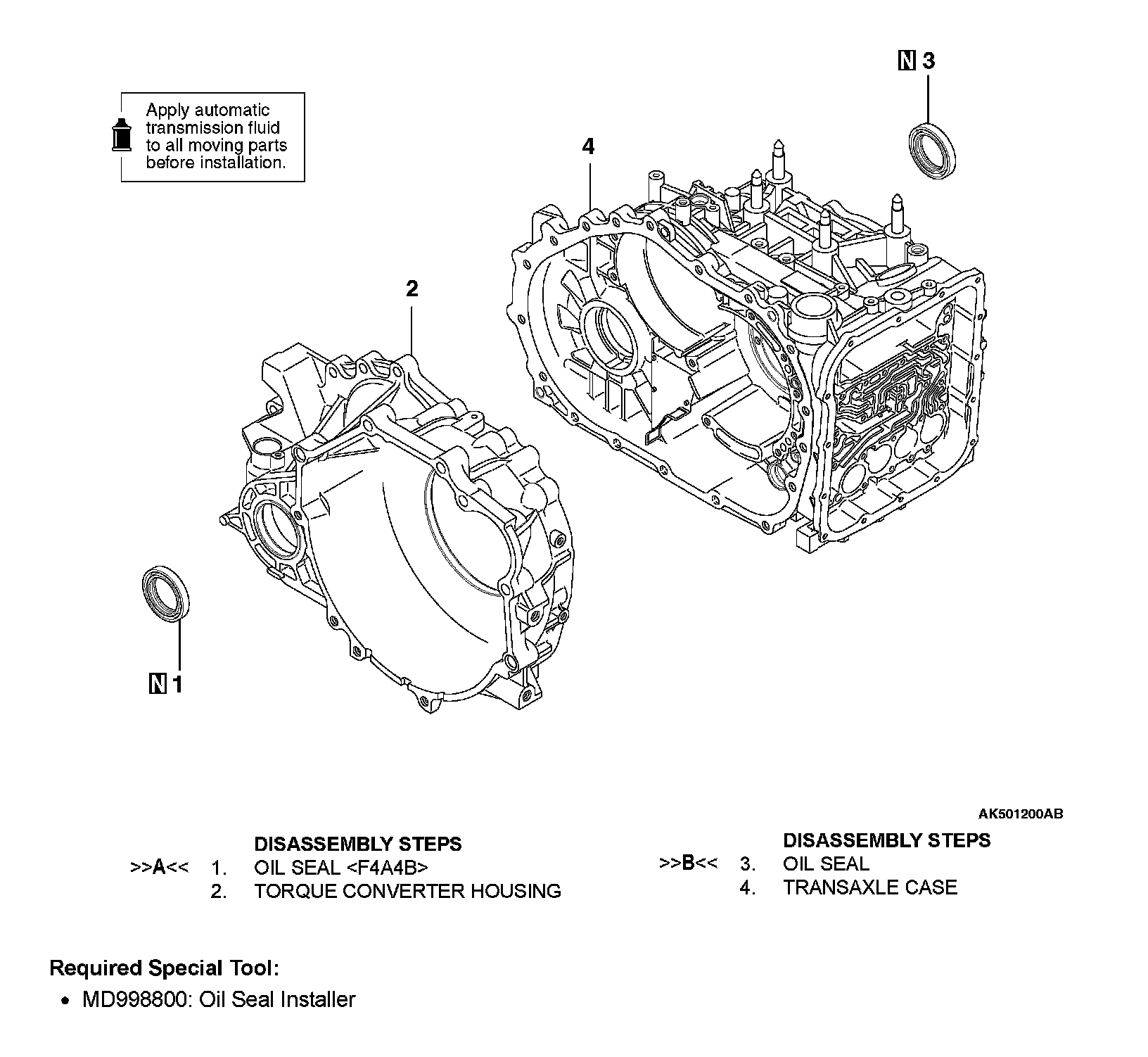

Disassembly Steps 1-4 & Required Special Tool:

ASSEMBLY SERVICE POINTS

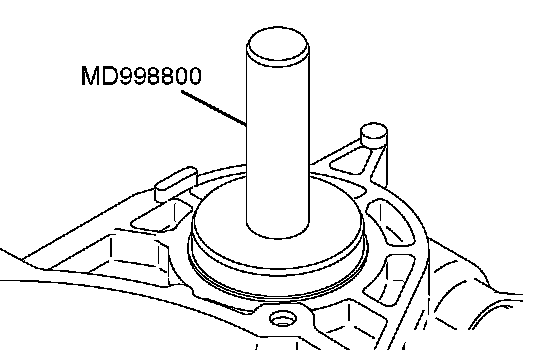

>>A<< OIL SEAL INSTALLATION





Use special tool MD998800 to tap the oil seal into the torque converter housing.

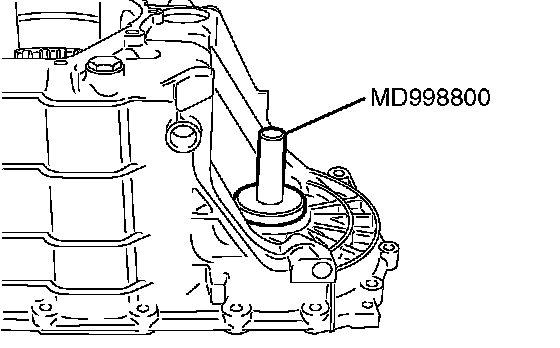

>>B<< OIL SEAL INSTALLATION

Use special tool MD998800 to tap the oil seal in the transaxle case.
