Home
>>
Mitsubishi Truck
>>
2006
>>
Outlander L4-2.4L SOHC
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Locations
>>

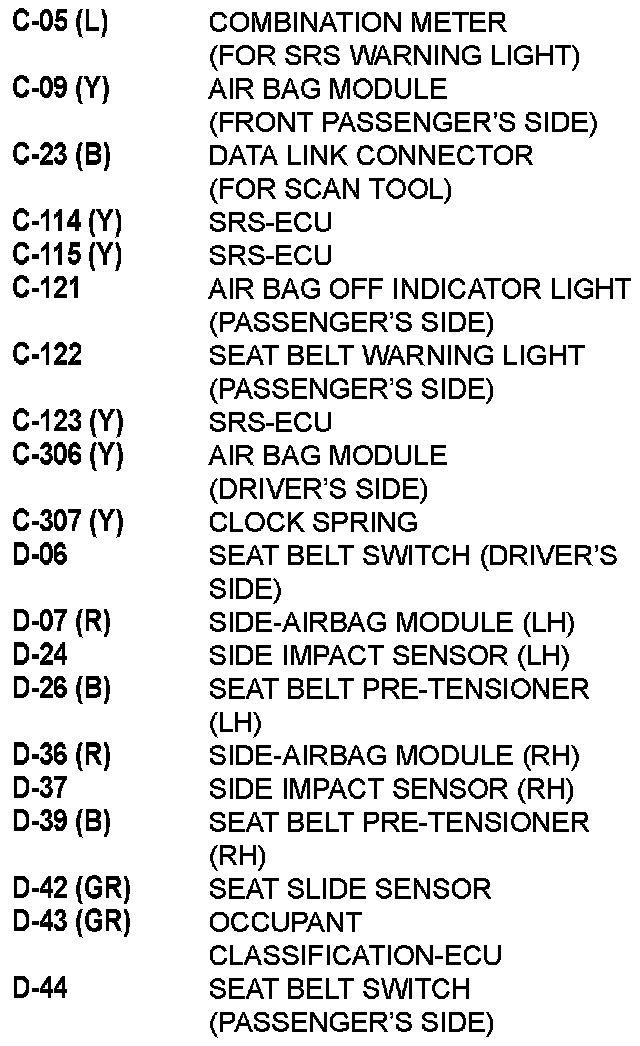

Connector Locations
Connector Locations

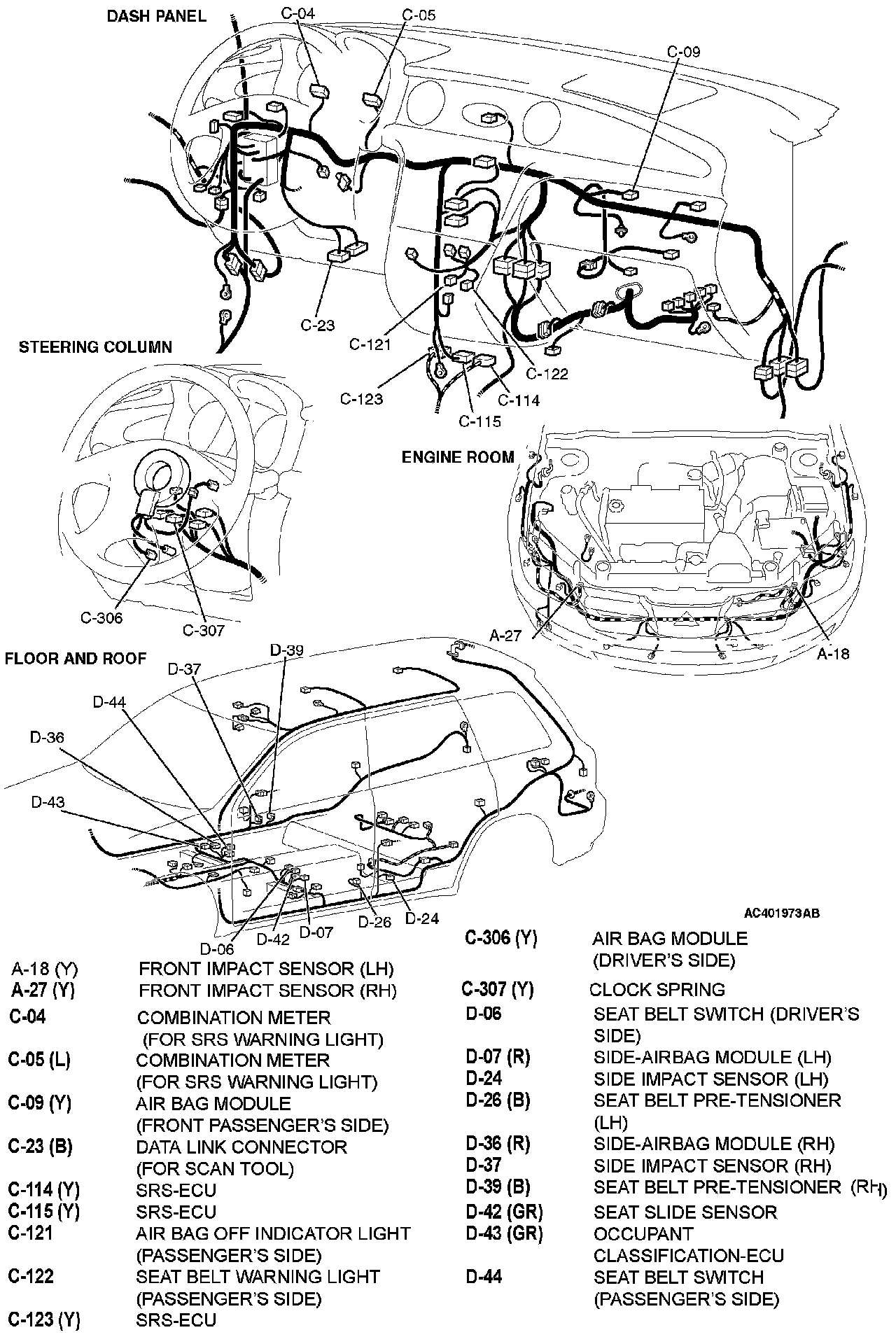

Configuration Diagrams:
Configuration Diagrams Part 2:
