Accelerator Pedal: Service and Repair

ACCELERATOR CABLE AND PEDAL

REMOVAL AND INSTALLATION

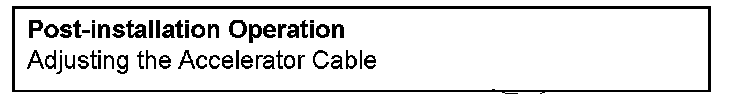

Post-installation Operation:

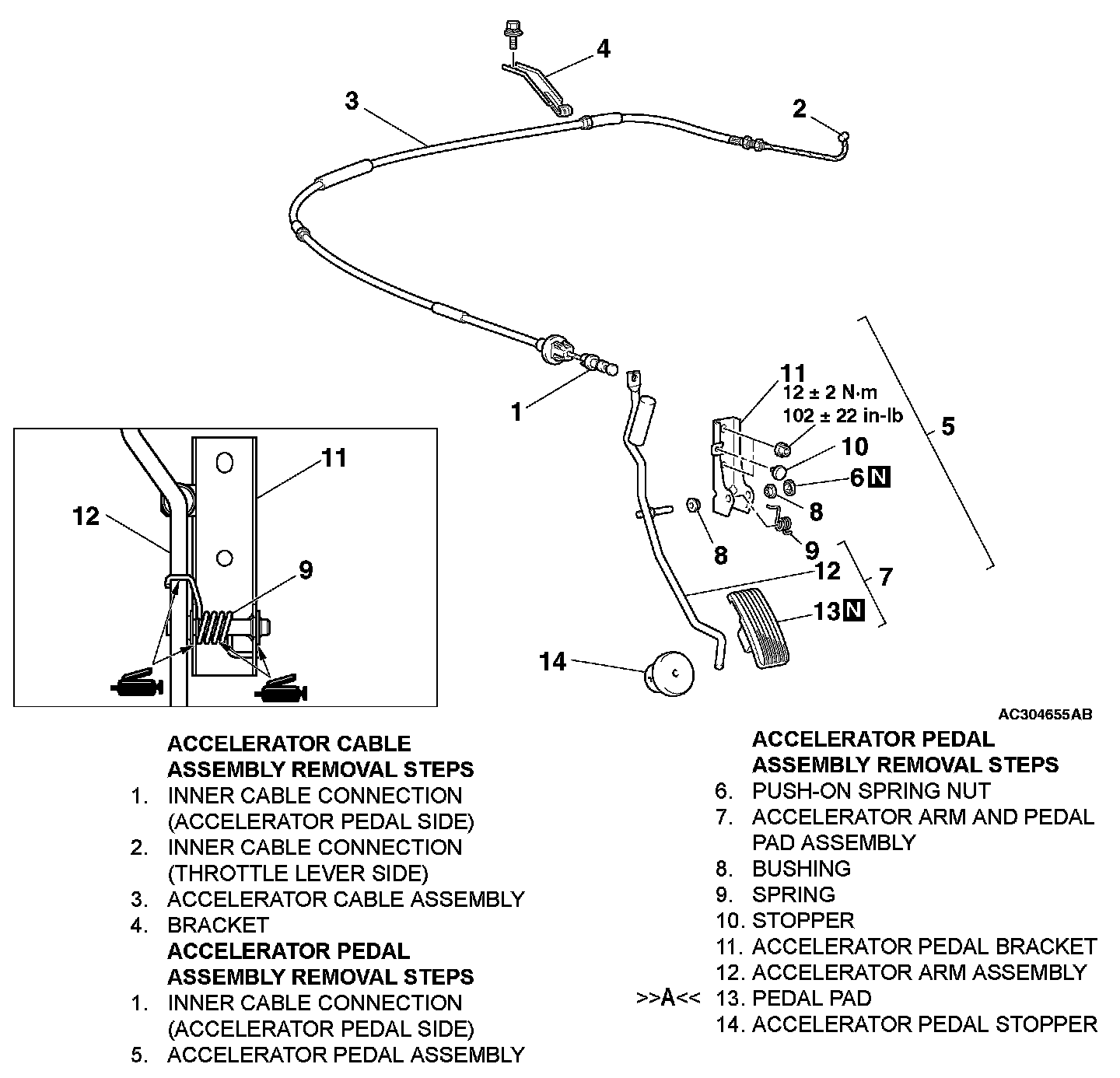

Removal Steps 1 - 14:

INSTALLATION SERVICE POINT

>>A<< PEDAL PAD INSTALLATION.

CAUTION: To prevent damages to the pedal pad, warm the thumb area of the pedal pad with a dryer, etc. prior to assembling it.

NOTE: If it is difficult to assemble, apply soapy water to the thumb area to enhance the assembling process.
