Automatic A/C Diagnosis

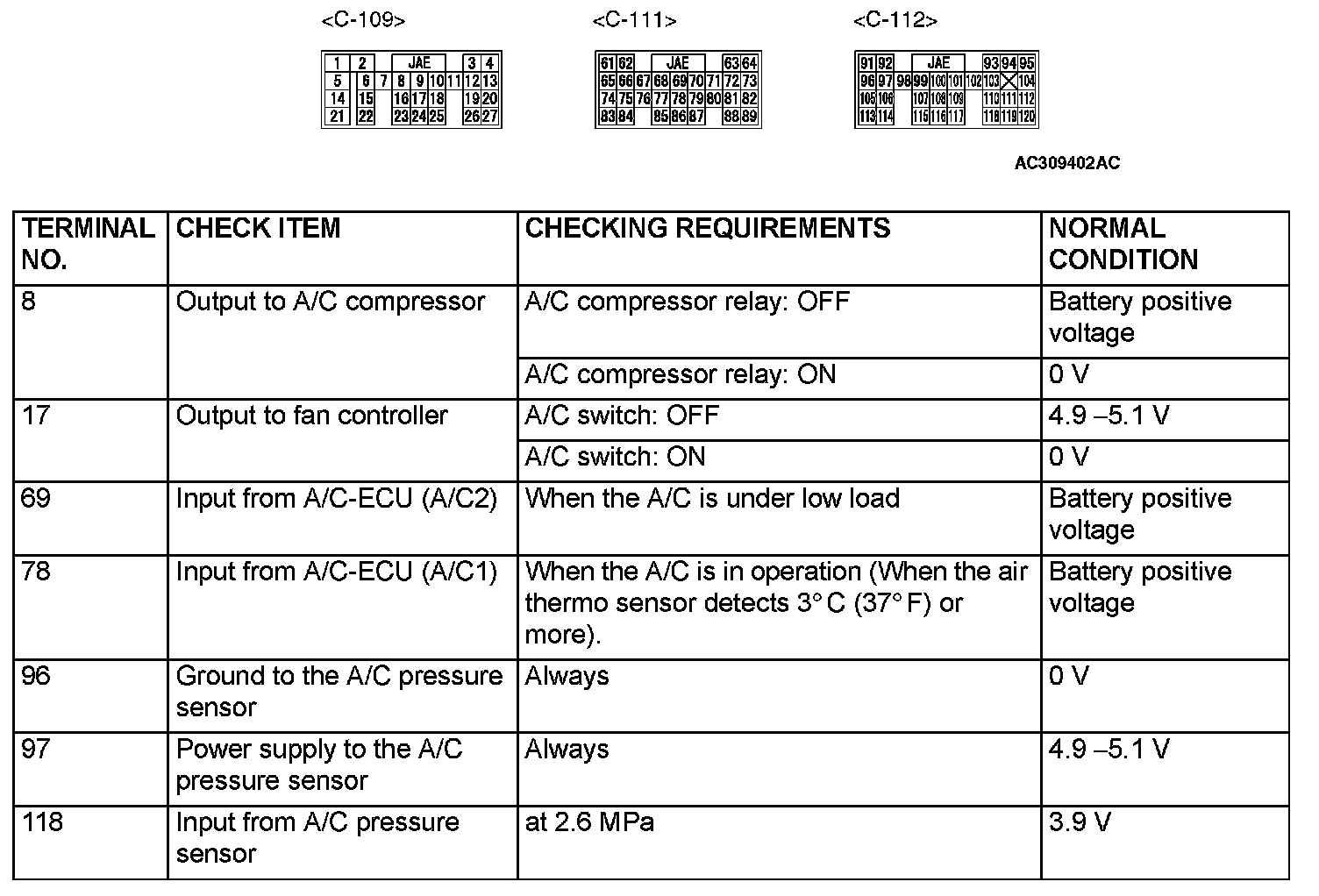

Check At Engine-A/T ECU Terminals:

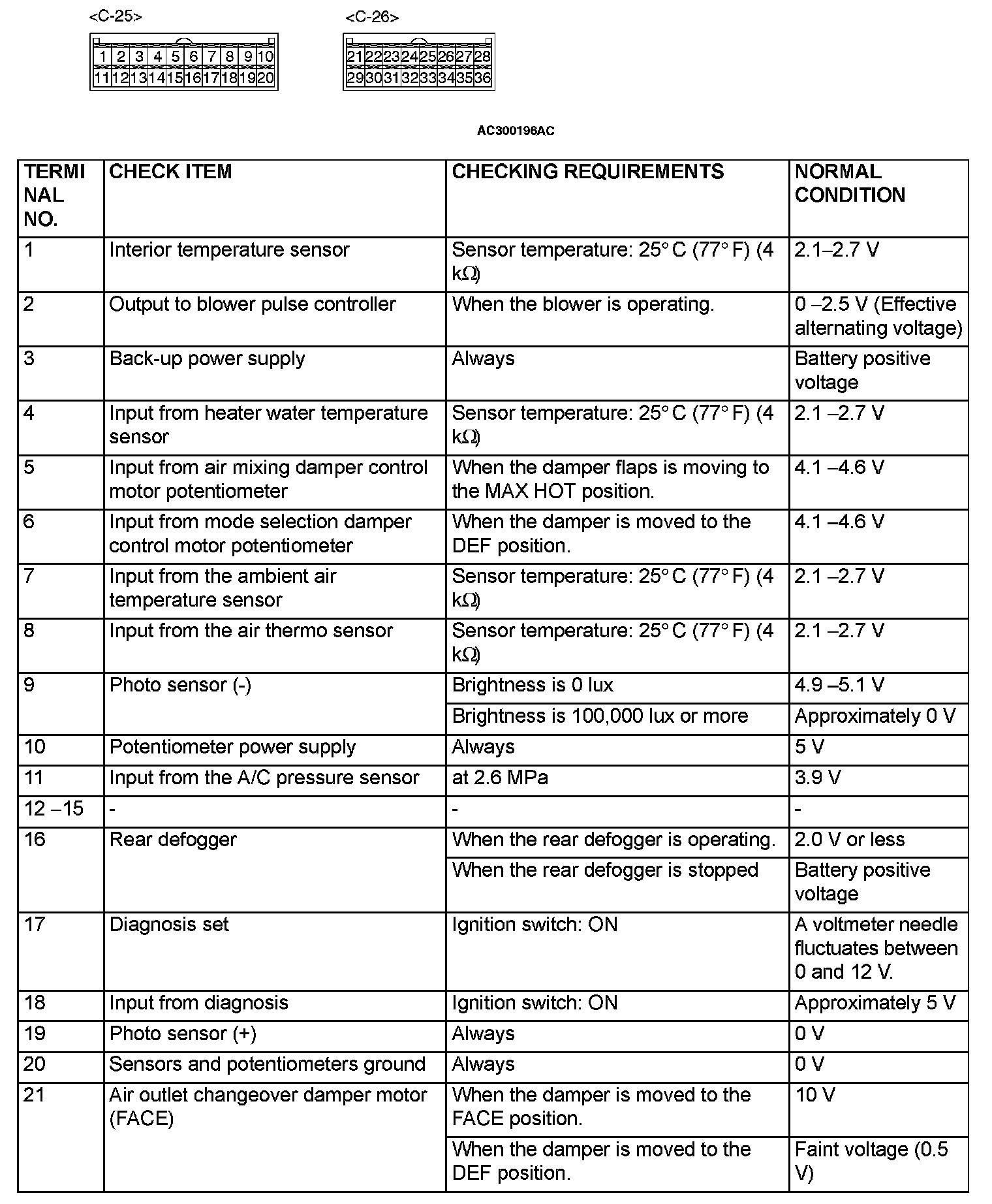

Check At A/C-ECU Terminal Part 1:

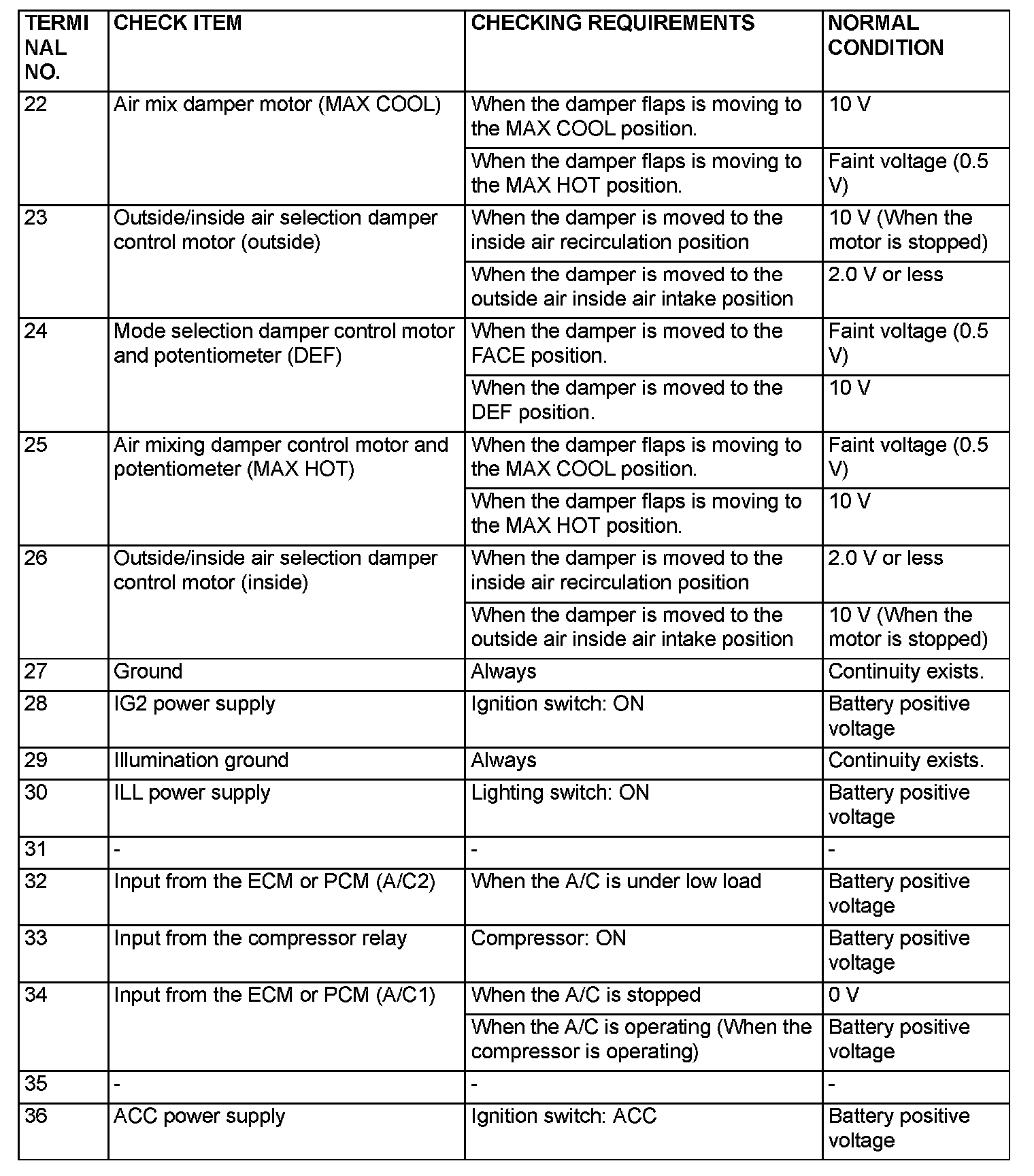

Check At A/C-ECU Terminal Part 2:
