Automatic Transmission/Transaxle

PARKING AND NEUTRAL:

1ST GEAR:

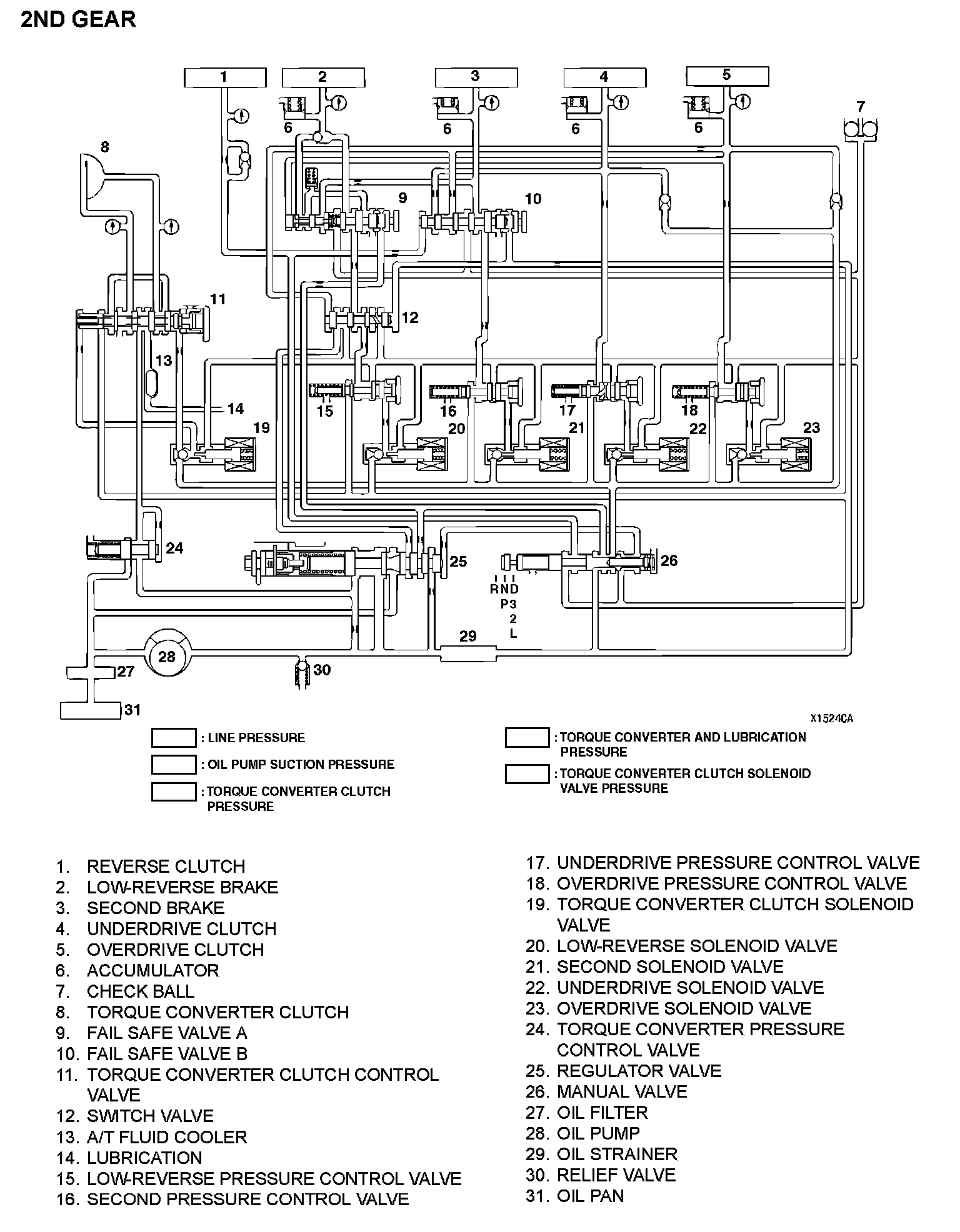

2ND GEAR:

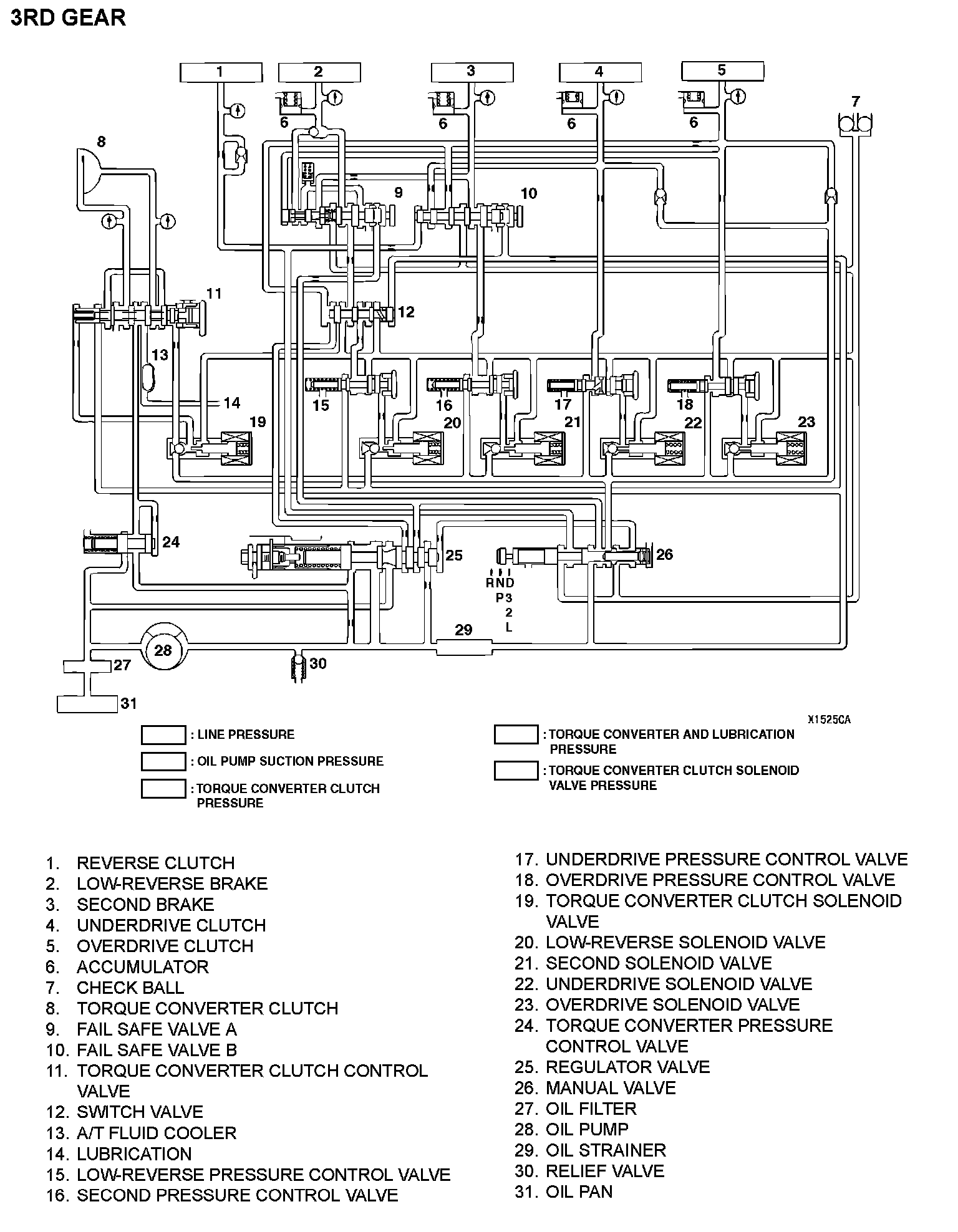

3RD GEAR:

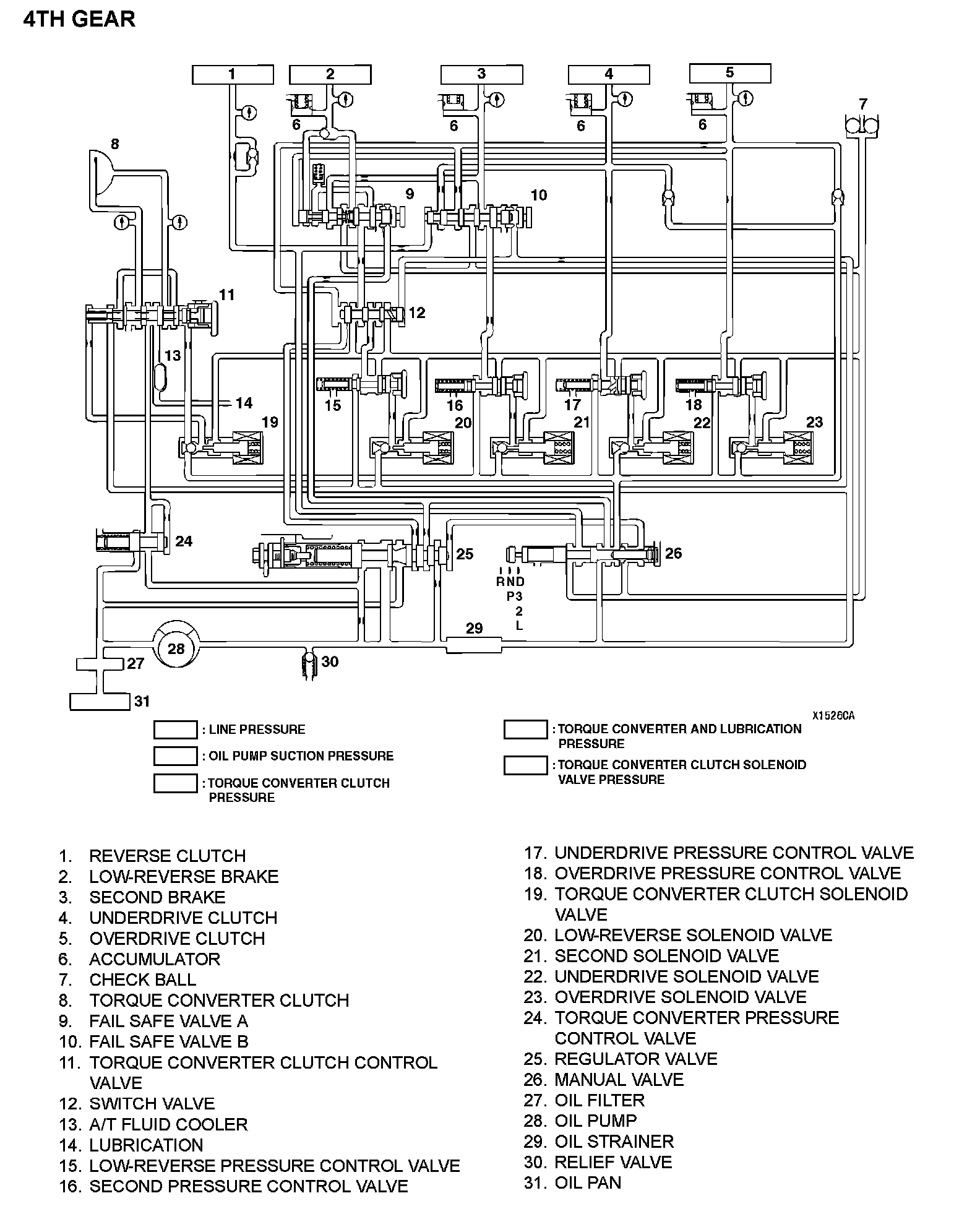

4TH GEAR:

REVERSE:

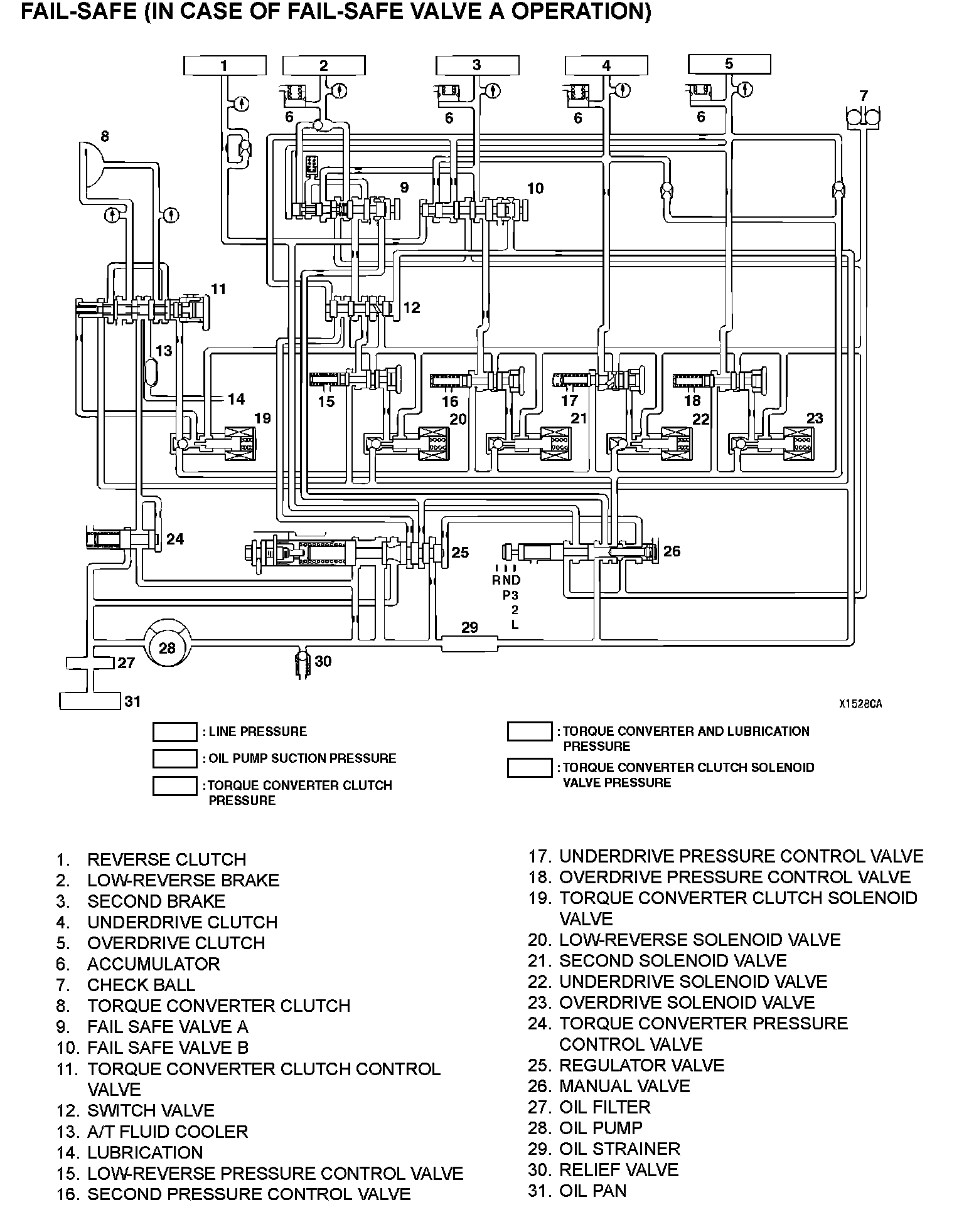

FAIL-SAFE (IN CASE OF FAIL-SAFE VALVE A OPERATION):

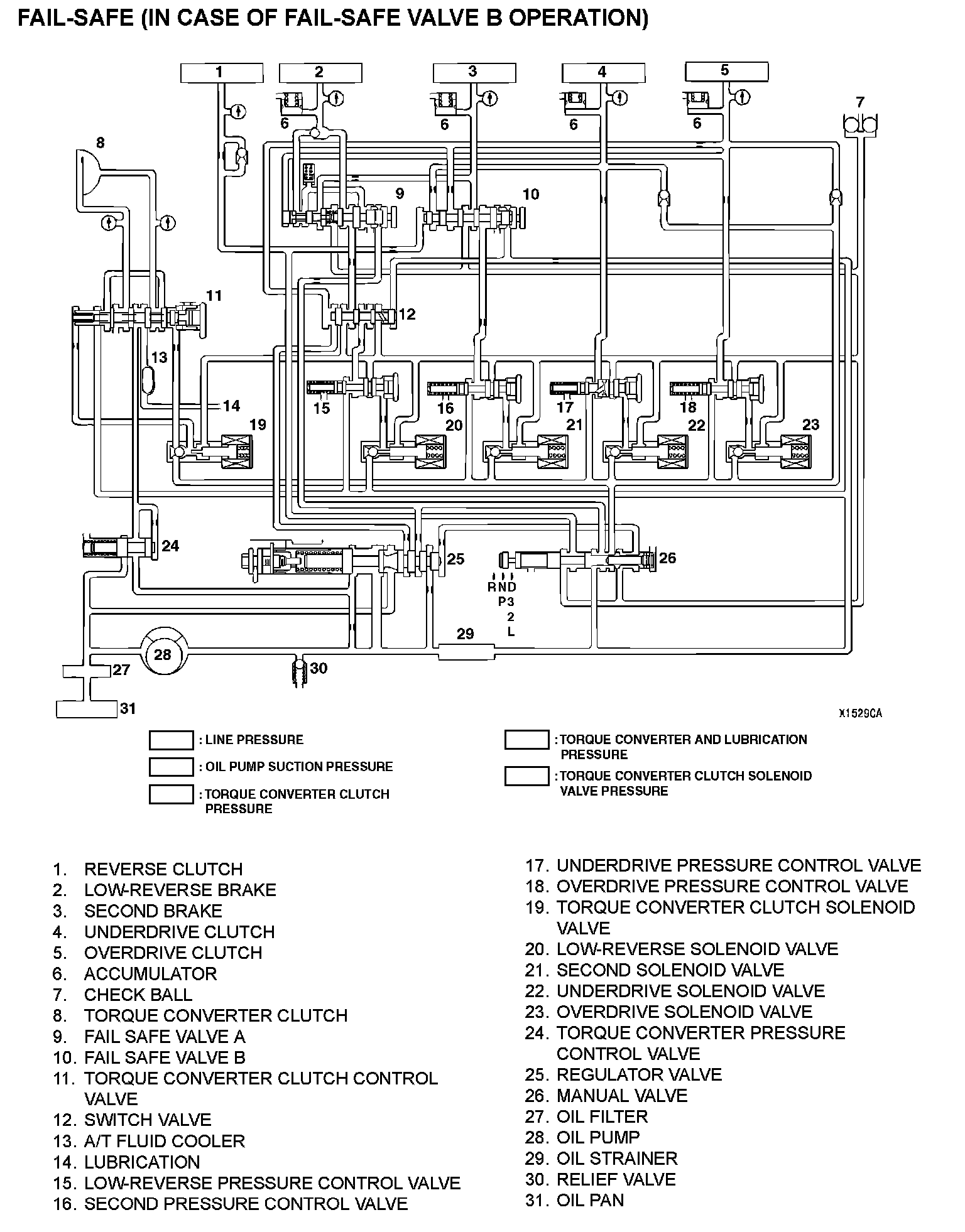

FAIL-SAFE (IN CASE OF FAIL-SAFE VALVE B OPERATION):
