Automatic Air Conditioning System

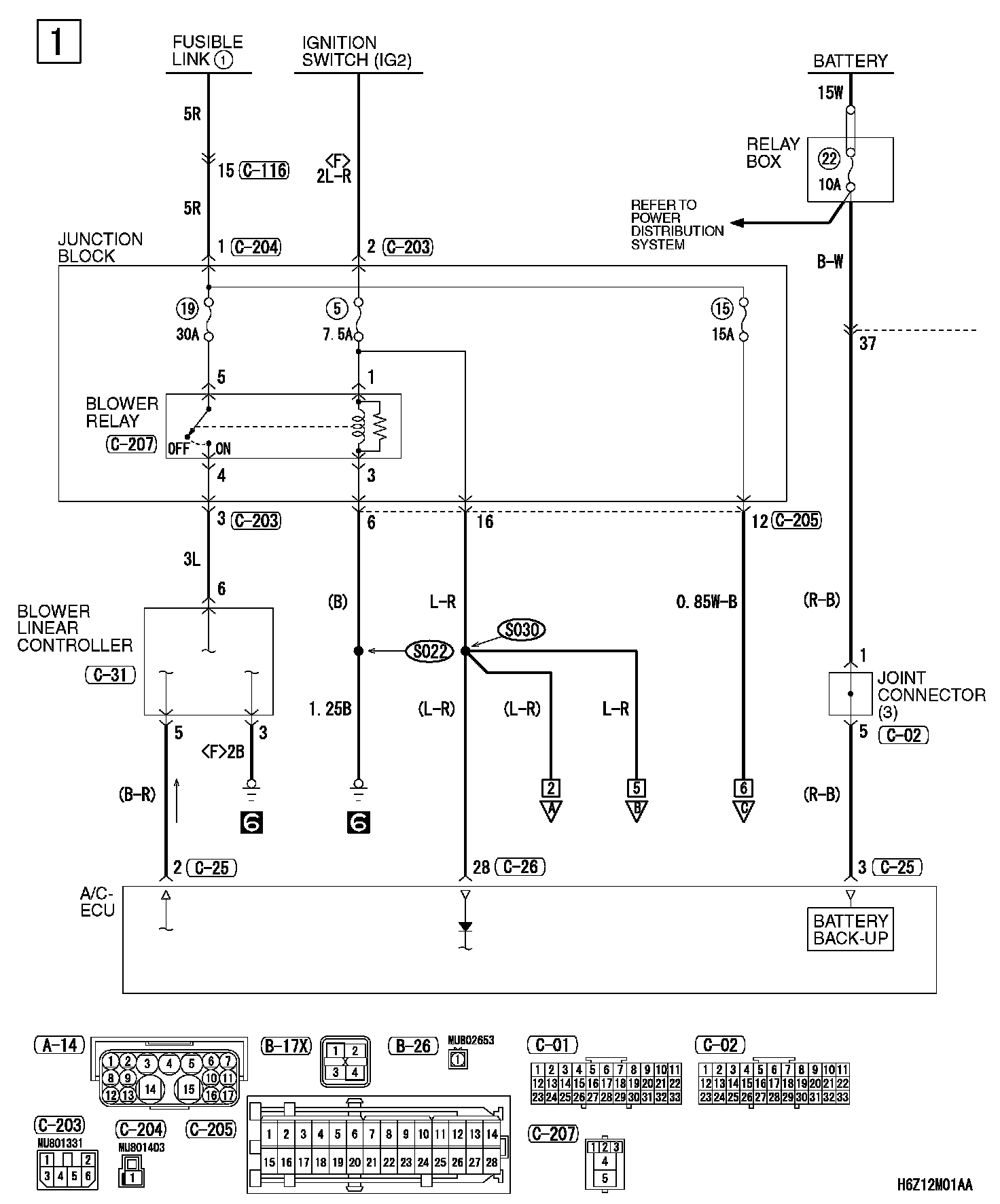

Automatic Air Conditioning System Part 1:

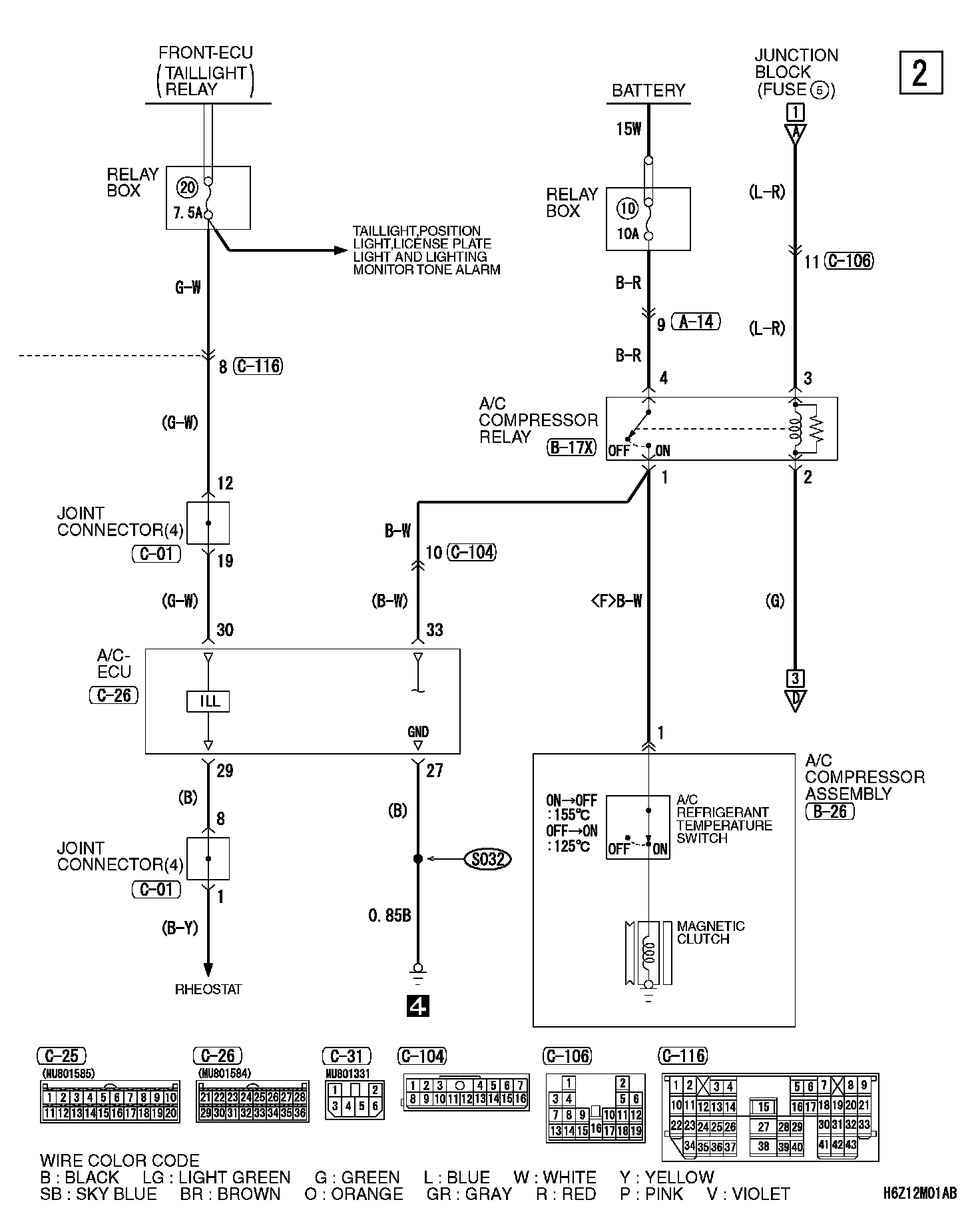

Automatic Air Conditioning System Part 2:

Automatic Air Conditioning System Part 3:

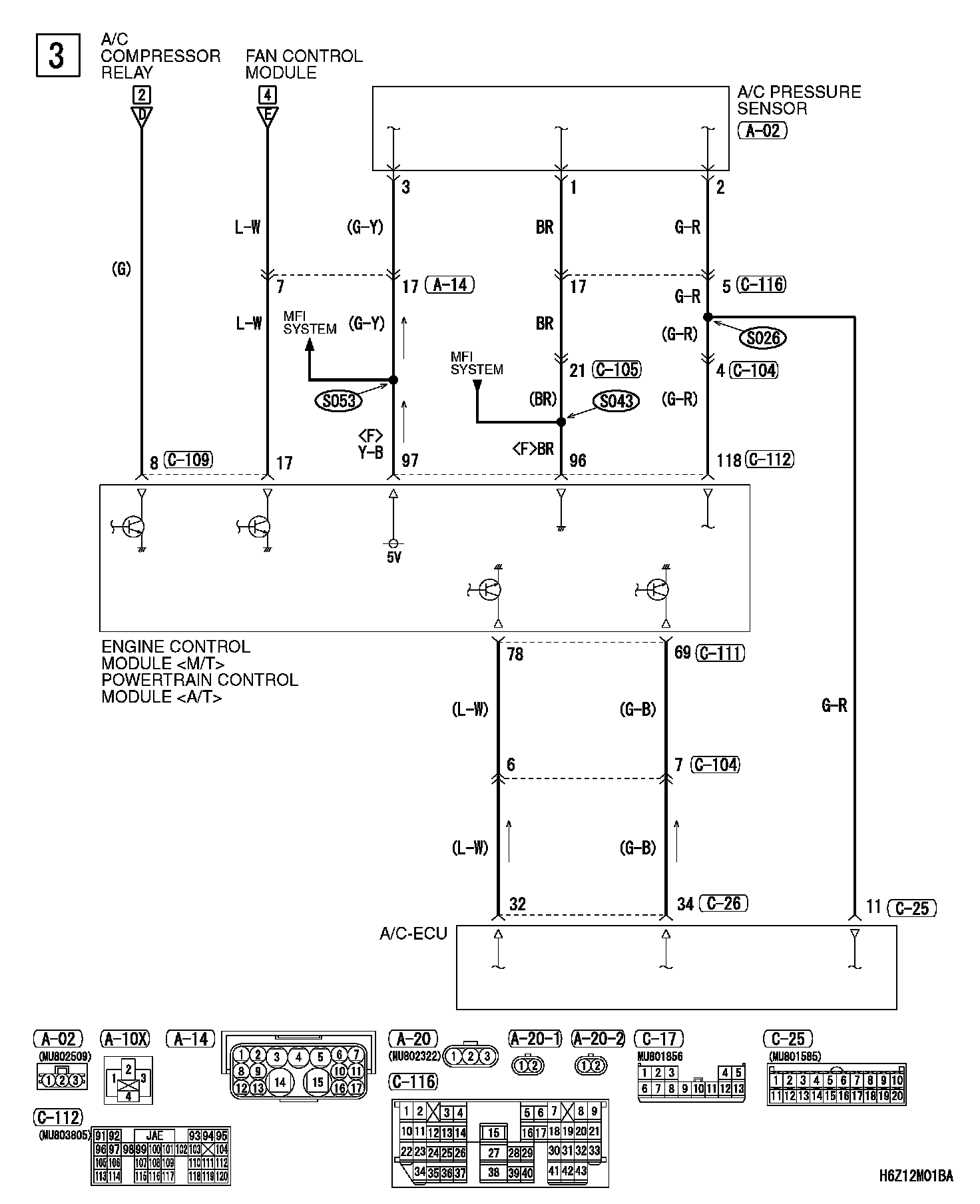

Automatic Air Conditioning System Part 4:

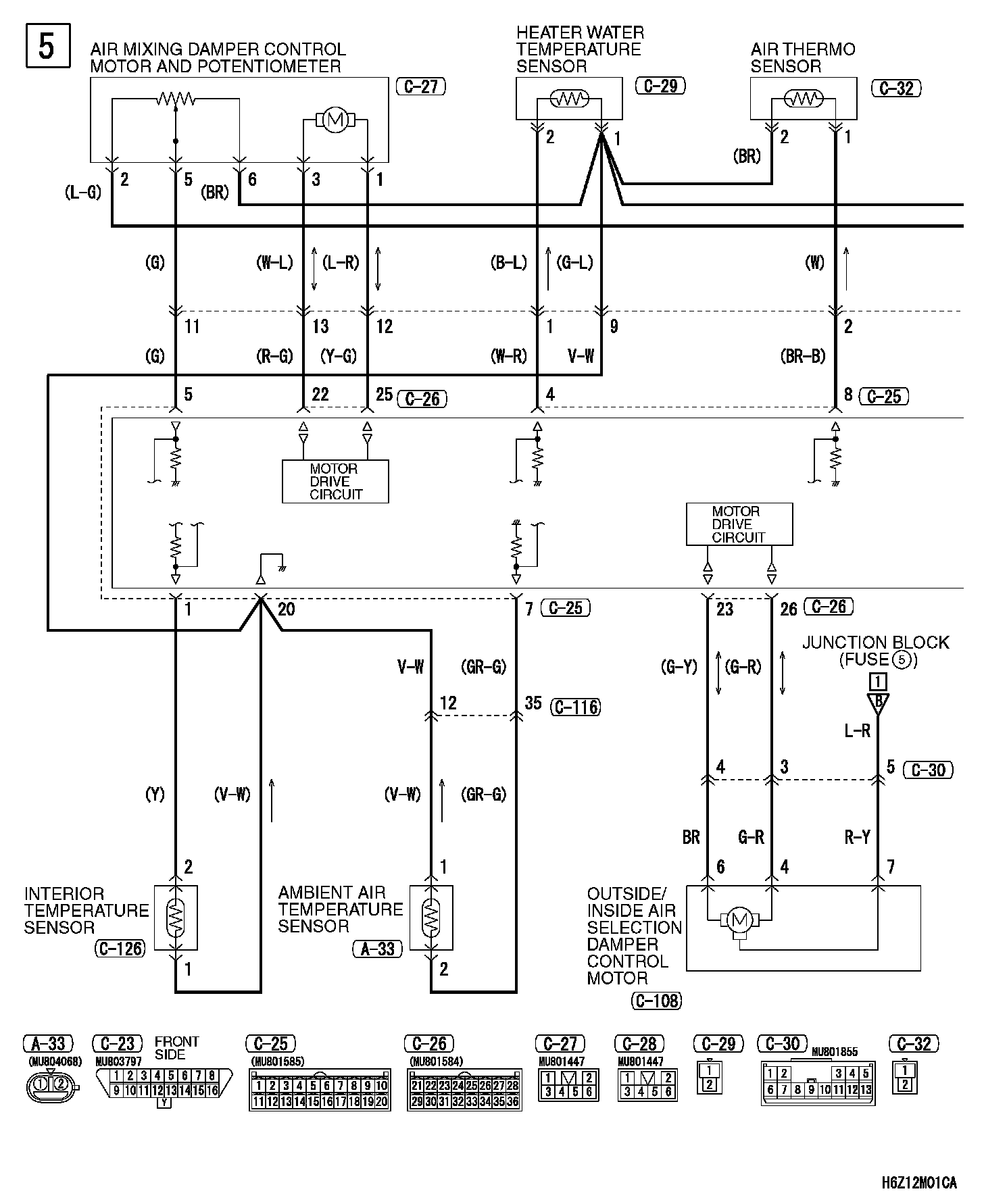

Automatic Air Conditioning System Part 5:

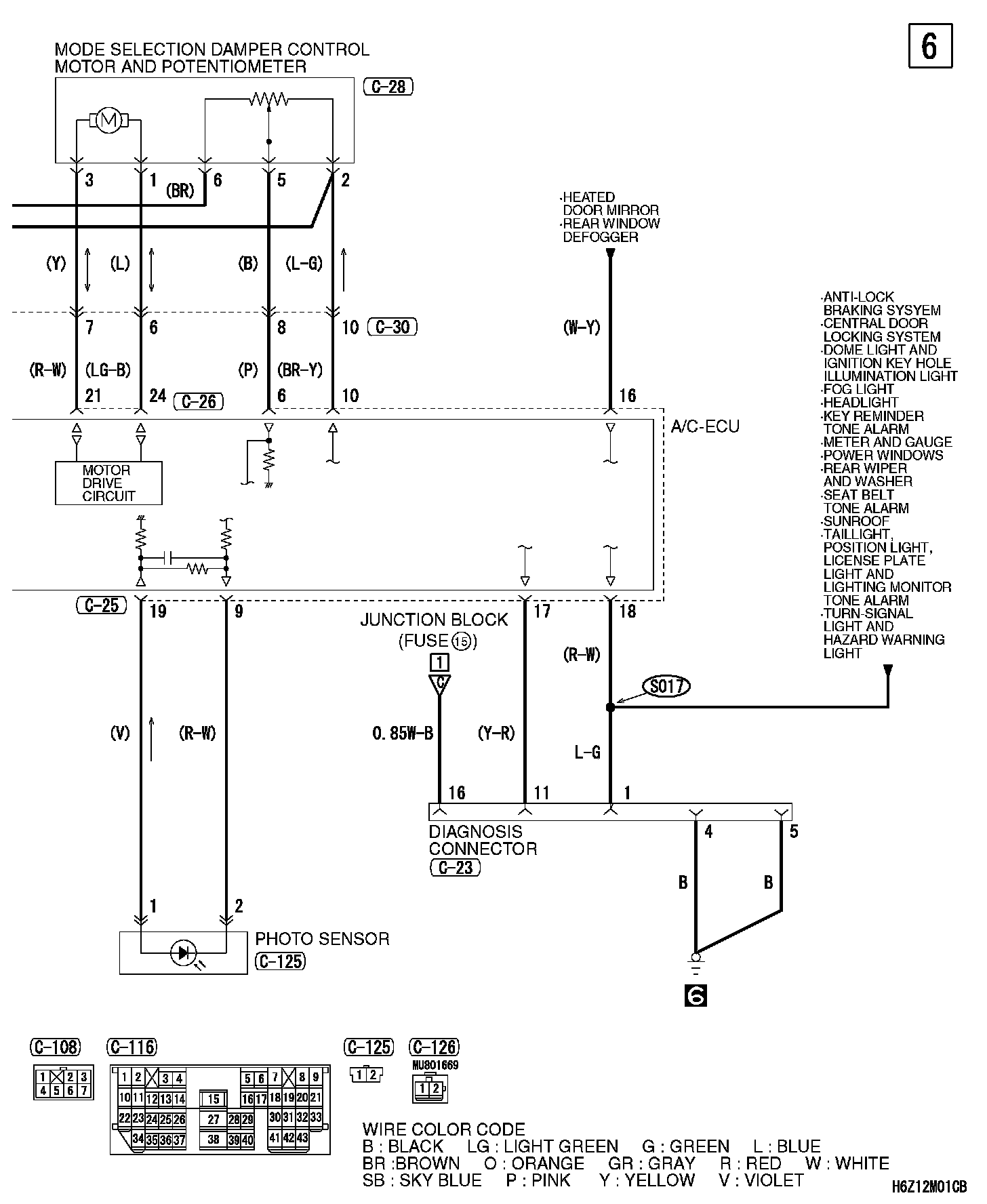

Automatic Air Conditioning System Part 6:

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Splice Locations: The locations of Splices referred to within these diagrams can be found via the splice number at Vehicle Splice Locations. Splice Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
