Removal and Replacement

Removal and Installation

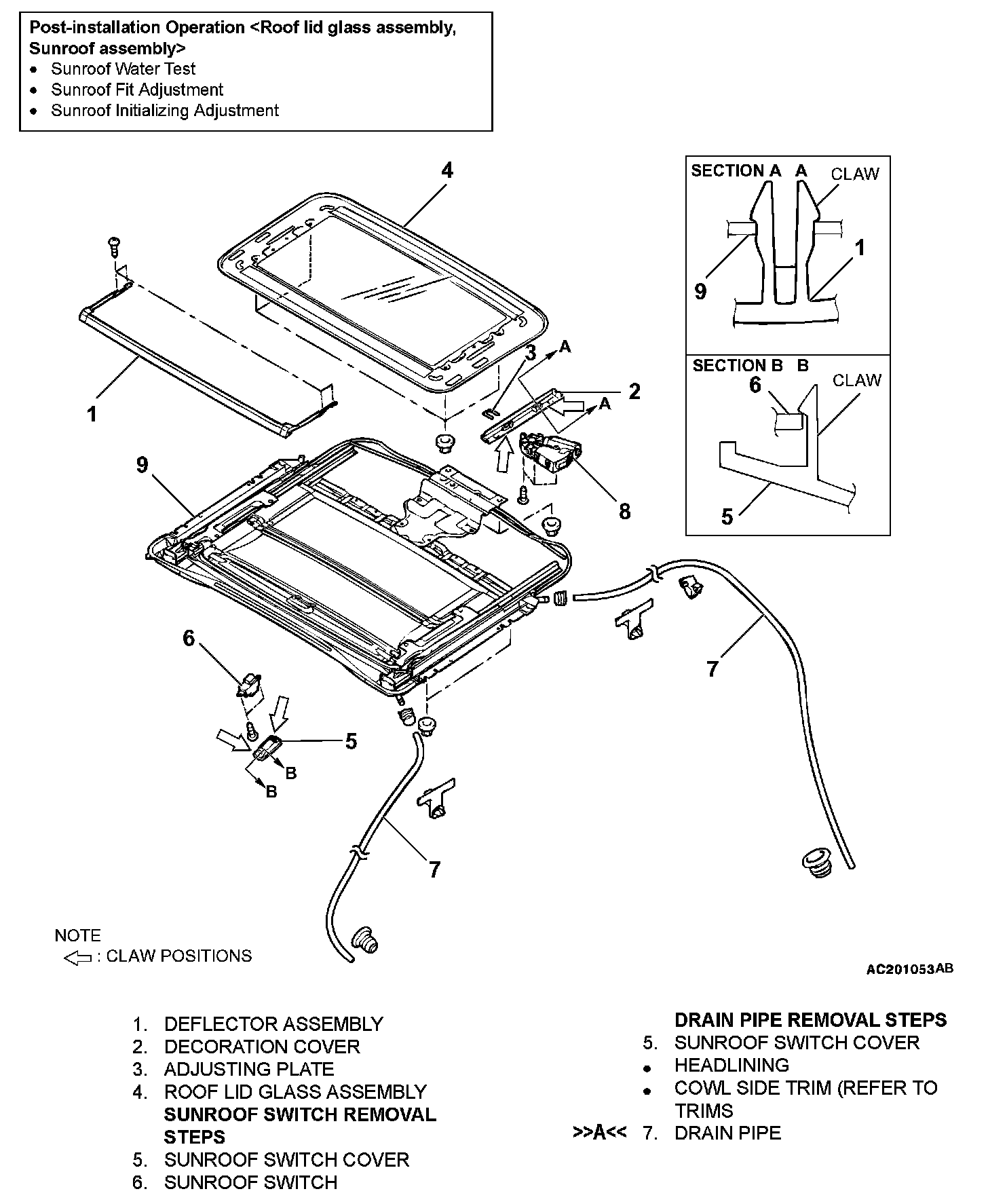

Sunroof Assembly Part 1:

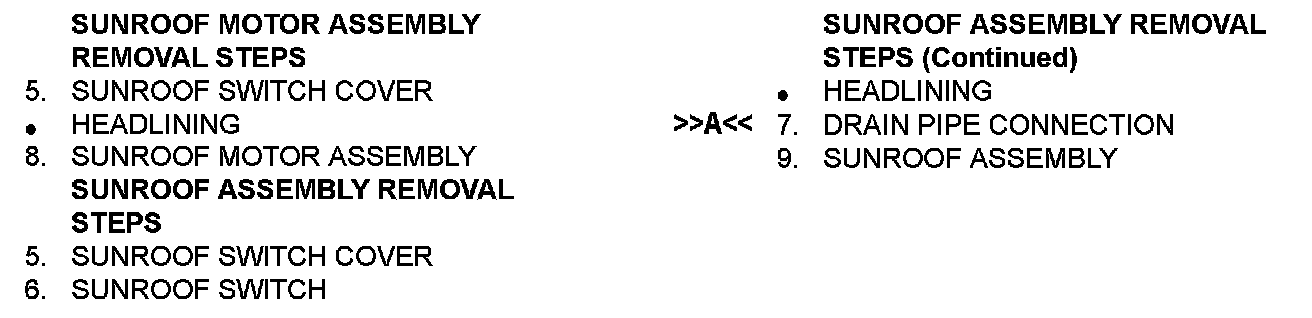

Sunroof Assembly Part 2:

Required Special Tool:
- MB991223: Harness set

INSTALLATION SERVICE POINTS

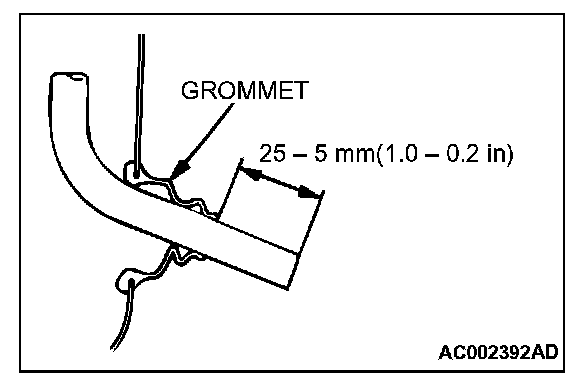

]]A[[ DRAIN PIPE INSTALLATION







Install the grommet, and then position the drain pipe so that it protrudes from the grommet as shown in the illustration.



Disassembly and Assembly

Disassembly And Assembly:

INSTALLATION SERVICE POINT

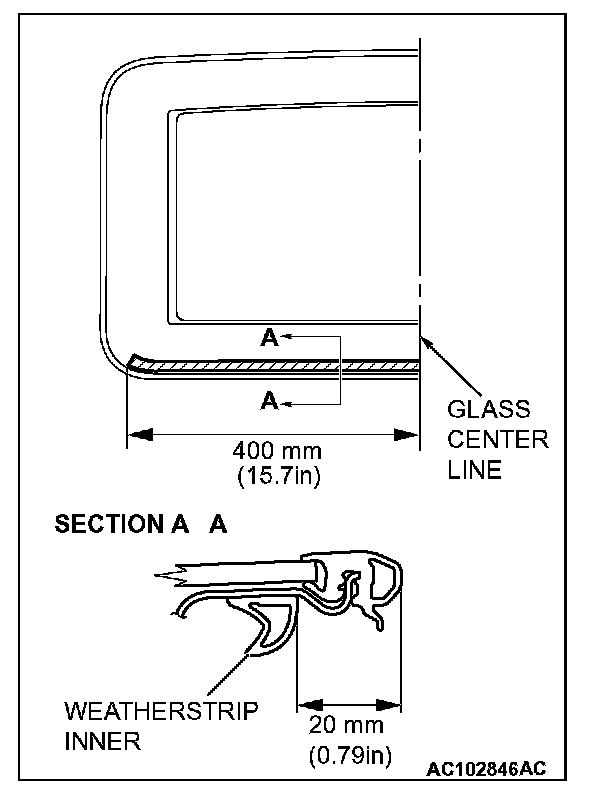

]]A[[ WEATHERSTRIP INNER INSTALLATION
1. Degrease the weatherstrip inner assembling surface of the roof lid glass side with unleaded gasoline.







2. Assemble the weatherstrip inner in the location shown.
