Moldings

MOLDINGS

REMOVAL AND INSTALLATION

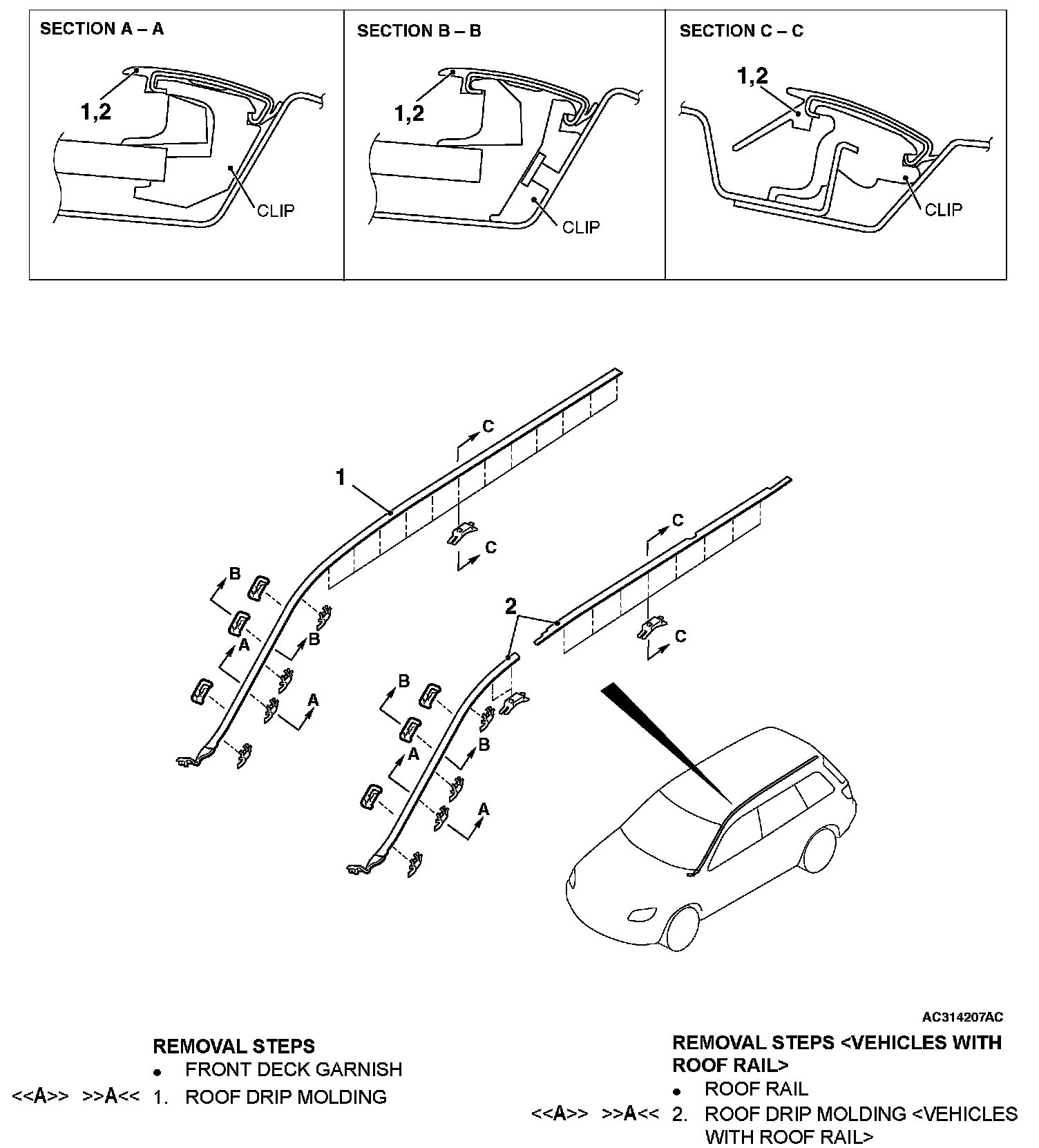

Removal Steps 1-2:

Required Special Tool:
- MB990449: Window Molding Remover

REMOVAL SERVICE POINT

[[A]] ROOF DRIP MOLDING REMOVAL

CAUTION: If the molding has become warped, it should not be reused.

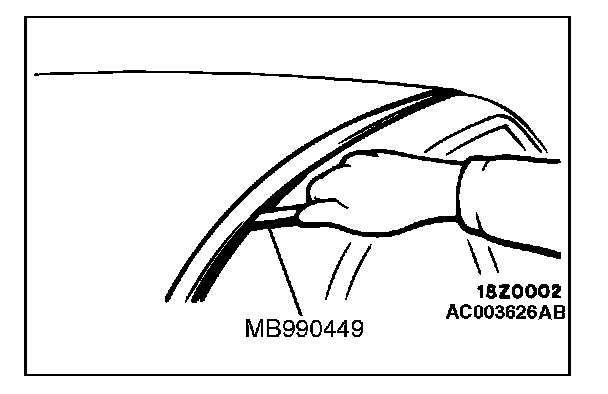

Use special tool MB990449 to pry out the molding.

INSTALLATION SERVICE POINT

]]A[[ ROOF DRIP MOLDING INSTALLATION
Install the clips to the roof drip molding before installing the molding to the vehicle body.
